NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert

NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert
NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert

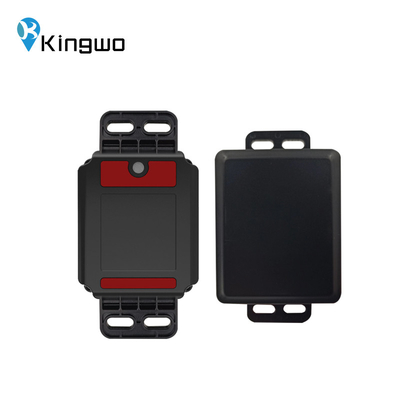

Large Image :  NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert

Product Details:
Place of Origin: CHINA
Brand Name: Kingwo
Certification: FCC CE ROHS
Model Number: NT07EO
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: 100 pcs per carton , total weight around 25kg
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month

NBIOT CATM1 Unpowered Bluetooth Excavator GPS Tracker Anti Theft Motion Alert

Description
Wifi: 4.0 Or 5.0 Motion Sensor: DA260
Bands: B2 B4 B12 B13 B3 B8 B20 Battery: Lithium 8100Mah
Temperature Sensor: Built In Bluetooth: 5.0
High Light:

Motion Alert Excavator GPS Tracker

,

Unpowered Excavator GPS Tracker

,

NBIOT GPS Tracker Anti Theft

Anti theft NBIOT CATM1 Unpowered Lithium Bluetooth Motion Alert Excavator GPS Tracker

NT07EN is a Anti - theft NBIOT CATM1 Unpowered Lithium Bluetooth Motion Alert Excavator GPS Tracker ,  it has a built in 8100mah batteries which can last 5 years if pings once a day, and it has built in G-sensor to detect motion alarm if the excavator has been moved or stolen.

Features:

1. 8100Mah Lithim Ion battery , more than 5 years working life.

2. Screw mount for tighten installation

3. AGPS, WIFI , LBS , GPS

4. Motion alert whenver the object is removed

5. Multiple upload models

6. CatM / NBIOT and 2G technology

7. Tamper alert

8. LBS, WIFI indoors tracking





Specifications:



Physical Dimension 81mm*51mm*31mm(L*W*H)
Weight 190±4g
Cellular Communication module Quectel BG95 M3
Frequency

Working frequency:

Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85
• Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85
• EGPRS: 850/900/1800/1900MH

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

Power Battery

Long lasting Lithium-ion battery and (3.6V,5400Mah or 8100mAh)

and ultra-low discharge rate:less than 1%, store one year below 25℃

Power consumption Average working current <100mA; Power save current <7uA;
GSM antenna Internal High Gain
GPS antenna Internal High Gain
SIM Microsim
Indicator 2 status LEDs, Green: GPS, Red:Celluar
Environmental Parameter Working Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% (no fog)
Ingress Protection Rating IP67



 More features:

• Wifi Locate

The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.

 Early power sleep mode

In order to reduce the waste of power, the device will not continue to work and directly enter the sleep state under those abnormal status:

The device does not recognize the SIM card;

Cellular module resets 6 times continuously;

Device resets 6 times continuously;

Failed to connect to the server (single IP 3 times, dual IP 2 times each);

No response from server after sending upload data three times in a row.

VCC voltage is lower than 2.9V;

After VCC is lower than 2.7V or devices resets 6 times continuously, if the upload interval is less than 60 minutes, the sleep time will be changed to 60 minutes in mandatory ;

• OTA commands from backend

Since the wake up of the device is short, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.

• Tracking

The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software





Kingwo NT07E CAT M1 NB1 LTE GPS Tracker Long Standby Strong Magnet GPS GPRS GSM Asset tracker
