|APP Name:||Track Sense||Weight:||78g|
|Working Temperature:||- 20 ℃ ～ 70 ℃||Frequency:||GSM 850 / 900 / 1800 / 1900MHz|
OTA Control GPS Trolley Tracker,
Monitoring GPS Trolley Tracker,
OTA Control mini tracker device

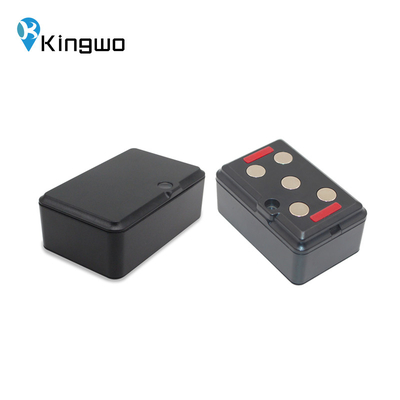

Mini Size OTA Control Geo-Fences Easy Installation Monitoring Equipment GPS Tracker
Open the top cover of the terminal, insert the prepared SIM card into the SIM card holder, and then confirm that the SIM card button is well placed . Please make sure that the SIM card has the GPRS function available in advance and write down the SIM card number.
After installing the SIM card, turn the battery switch to the ON position. When the red light starts to flash, indicating that the terminal is powered on.
TCP/UDP connection mode setting
For example, the client's server IP is: 18.104.22.168, port number: 8881. If it is connected by TCP, use SMS to edit: *88*1119145040064*8881*1#; if it is UDP connection, edit: *88*1119145040064*8881*0#. The terminal will reply: set ok, the setting is successful.
The terminal is with built in WIFI Chip, when it starts, the WIFI Chip will automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the terminal will pack those hotspots info and saved into the pack that will be uploaded, after the backend receives information from the terminal, it will interpret the WIFI info and acquire the current location info according to the WIFI position server.
The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position
When found the vehicle is stolen or in other emergency cases and the real time location of the vehicle needs to be checked, a SMS can be sent or send a command from the backend, when the terminal starts work next time, it will receive this command and enter into track mode, and upload the location data according to the preconfigured interval by customer until a stop tracking command is received
When the terminal enter into blind zone when in sleep mode,it will store the trace data according to the preconfigured time interval and it will upload the data in the blind zone to the backend
Remark: MT07/MT07C upload 16-32 pack blind zone compensation data, MT07W/MT07CW uploads 8-16 pack blind zone compensation data.
The terminal could verify the timely wake up time points, maximum 4 points can be set for more accurate position and connection to the server, this function could use SMS command or backend command to set
Since the working time of the terminal is short, it is rare to receive the SMS, to ensure the command sending efficiently, the backend uses a specific commands for MT06CW which can preset the command, when the terminal is online, the backend will automatic send this command, to make sure the commands is properly received.
The terminal will upload the battery level status together with the location data pack, and display the battery level on the backend so the user could well know the balance battery, and meanwhile display the current transmission time and the balance battery level of the next uploading pack, so the user could have clear view on the terminal status
At Bottom of MT07/MT07W is built in with high sensitive light sensor, when the terminal is tampered, the terminal will be activated even in sleep mode and enter into tamper alarm working mode, and upload the alarm function to the backend
|Built in battery specification||
Disposable Lithium-ion battery and (3.6V,2700mAh)
and ultra low discharge rate:less than 1%, store one year below 25℃
|Power consumption||Average working current <100mA; Power save current <15uA;|
|Frequency||4 bands:GSM 850/900/1800/1900MHz|
|WIFI Frequency range||2.4 GHz~2.5 GHz (2400M~2483.5M)|
GPS L1:1575.42MHz C/A Code
BD2 B1 1561.098MHz C/A Code
