Product Details:
|
| Color: | Black | Feature: | Built-in Vibration/motion Sensing |
|---|---|---|---|
| Intelligent Self-inspection: | Support | Funcftion: | Static Drift Suppression |
| Function: | Vibration Alatm | Gsm Antenna: | Inbuilt Antenna |
| High Light: | hidden Magnetic Car Tracking Device,4g Magnetic Car Tracking Device,4g wireless hidden gps tracker |
||

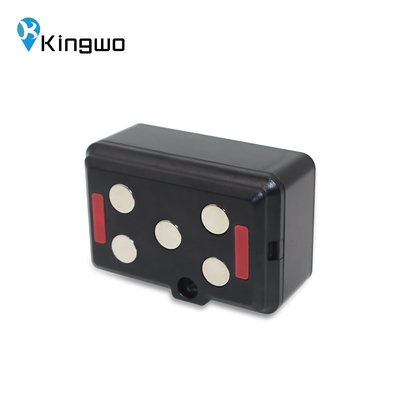

LT06PB standby large-capacity high accuracy GPS signal viberation alarm static drift suppression
Kingwo has very experienced R&D software and hardware team with a number of R&D design patents, the Beidou/GPS products that are provided by our company has been widely used in logistics, taxi, public transportation, banking, postal service, military police.
In recent years, with the rapid development of the auto finance in domestic market, Kingwo has become a mainstream supplier of automotive financial risky control which based on Bediou/GPS technology, as “internet +expert of auto financial risky control products”, Kingwo has won good reputation and the market share has increased by 100% every year for three consecutive years
1. Support tamper proof alarm
2. Multiple position mode: GPS, Wifi,AGPS, LBS
3. Jamming detection
4. Motion alarm
5. Strong magnetic
6. Real-time position and monitor
| Physical | Dimension | 81mm*66mm*33mm(L*W*H) |
| Weight | 193±5g | |
| Cellular | Communication module | Quectel BG95 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85 • EGPRS: 850/900/1800/1900MHz
protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
