Product Details:
|
| Intelligent Self-inspection: | Support | Funcftion: | Position Module Alarm |
|---|---|---|---|
| Function: | Mileage Statistics | Gsm Antenna: | Built-in Antenna |
| Warranty: | 1 Years | Power Off Alarm: | Support |
| Voltage: | 3.6V | ||
| High Light: | Mileage Statistics GPS Pallet Tracker,IP67 GPS Pallet Tracker,IP67 mini wireless gps tracker |
||

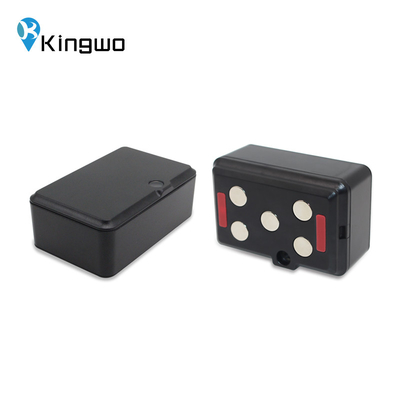

LT06PZ big battery capacity built-in GPS antenna mileage statistics power off alarm
Adhering to the "customer-oriented" service concept, Kingwo will continue to focus on the location service sector, and continue to innovate around the needs of customers such as Internet+, auto finance, vehicle location services, asset location services, and person location services to provide the competitive products and service for the operators in the world and create maximum value for customers.
1. Motion alarm
2. Removal alarm
3. Collision alarm
4. Multiple position modes: GPS, WIFI, LBS, AGPS
5. No wired needed, easy for installation
6. Built in G-sensor
| Physical | Dimension | 81mm*66mm*33mm(L*W*H) |
| Weight | 193±5g | |
| Cellular | Communication module | Quectel BG95 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85 • EGPRS: 850/900/1800/1900MHz
protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
