Product Details:
|
| Battery: | 8100Mah Lithium | G - Sensor: | X Y Z 3 Axis |
|---|---|---|---|
| GPS: | Ulbox | Celluar: | QUECTEL BG95 |
| Waterproof: | IP67 | PCB: | 4 Layers |
| Color: | Black | ||
| High Light: | 4G GPS Pallet Tracker,Waterproof GPS Pallet Tracker,IP67 waterproof location tracker |
||

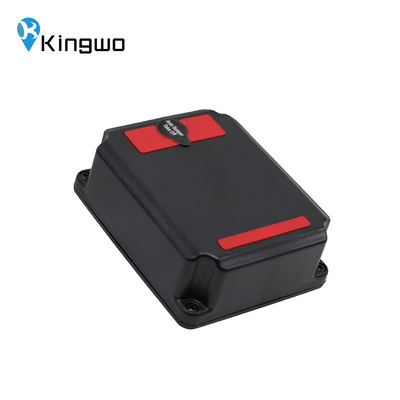

NT07EL is an IP67 Compliant Waterproof flexible install ultra compact 4G GPS Assets Tracker, it is with ultra compact design, easy for fast installation, no wiring required , will save labor costs, it with with latest CatM technolgy and support worldwide deployment.
Features:
1. IP67 waterproof compliant
2. Flexibile and fast installation
3. Global CatM1 techonlogoy
4. Multiple intelligent work modes
5. Jamming detection
6. Ultra low power consumption
7. Strong magnetic for easy installation
8. Motion alarm
Specifications:
| Physical | Dimension | 81mm*51mm*31mm(L*W*H) |
| Weight | 192±8g | |
| Cellular | Communication module | Quectel BG95 |
| Frequency |
Working frequency: • Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,5400mAh or 8100 mAh ) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <7uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim or ESIM | |
| Indicator | 2 status LEDs, Green: GPS, Red: EMTC | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
| More features: |
• AGPS
When the device successfully registers on network, AGPS is available to speed up the position speed and improve the position accuracy
• SMS and COM tool
SMS and COM tool for easy configuration.
• Low voltage power off
Device will immediately enter the low-power mode and will not wake up;
VCC voltage is lower than 2.7V;
VCC voltage is lower than 2.9V and the device has been continuously reset 6 times and the power is <=2%;
• Tracking
The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software
Q1. Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
