Product Details:
|
| Warranty: | 1 Years | Use: | GPS Trail Tracking |
|---|---|---|---|
| Type: | Gps Tracker Position | Product Name: | GPS Tracker Device |
| Network: | GSM/GPRS 850/900/1800/1900MHz | Color: | Black With Red |
| High Light: | GPRS 4g tracking device,Anti Theft 4g tracking device,GPRS Anti Theft Tracking Device |
||

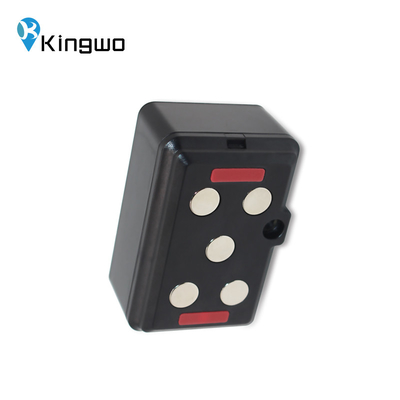

MT07N2 GPS position monitor 2G/4G/ NB/Cat.M hot sales global GPS high stable GPS singal multiple protocol
Shenzhen Kingwo IoT Ltd (Hereby referred to “Kingwo”) is a high tech company focus on IoT technology, our business includes development and research, manufacturing , sale and operations of Beidou/GPS location service products. Our products covers to vehicle location service, asset location service, person location service and platform big data operation etc, our purpose is to provide software and hardware solutions for the Beidou/GPS all over the world.
1. Strong magnetic
2. Remote upgarde
3. Multiple position mode: GPS, Wifi,AGPS, LBS
4. High stable GPS singal
5. Dual IP domain
| Physical | Dimension | 81mm*66mm*33mm(L*W*H) |
| Weight | 193±5g | |
| Cellular | Module | Quectel BG95 |
| Frequency |
Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26*/B28/B66/B71/B85 • EGPRS: 850/900/1800/1900MHz protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Processor | ST | |
| Motion sensor | DA260 | |
| Wifi position | Wifi 4.0 | |
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <10uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
