Product Details:
|
| Wifi: | ESP WIFI 4.1 | Tamper Sensor: | Available |
|---|---|---|---|
| Bands: | North America And Europe | Battery: | Disposable 8100Mah Lithium Ion |
| Temperature Sensor: | Built In | IP Protection: | IP67 |
| High Light: | 8100Mah Trailer GPS Tracker,Unpowered Trailer GPS Tracker,8100Mah anti theft gps tracker |
||

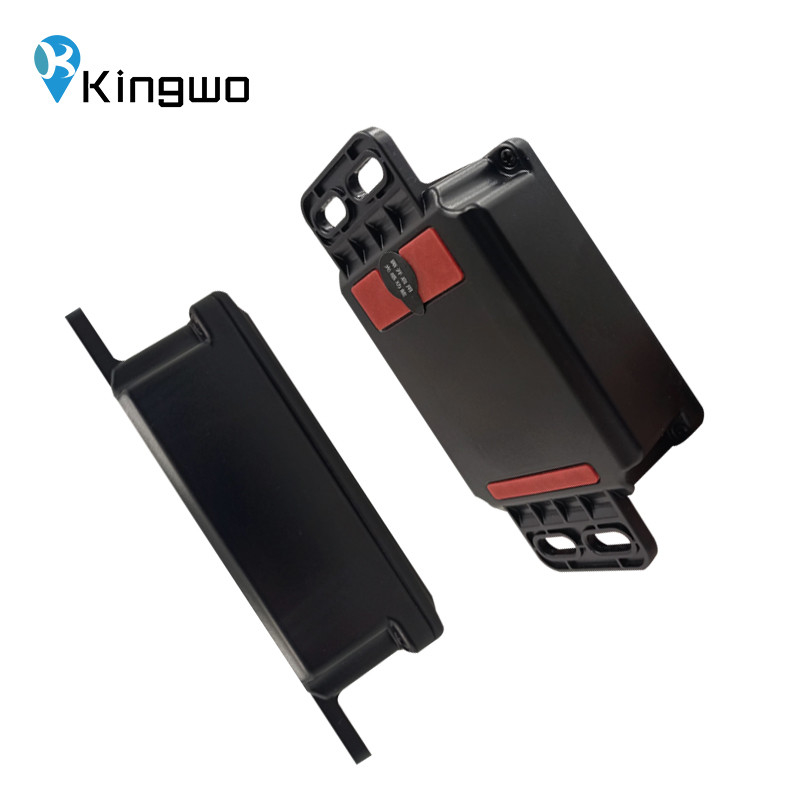

NT07EK is a 4G Lte Anti-theft Unpowered 8100Mah battery GPS Assets Wifi Bluetooth GPS Tracker,it is a compact in size, the tracker is designed for long time usage which without recharge required. It has an ultra-low power consumption
Features:
1. Track and history points check
2. More than 5 years work time
3. Removal / Tamper alerts
4.Compact in size
5. Waterproof
6. Wifi position
Specifications:
| Physical | Dimension | 81mm*51mm*31mm(L*W*H) |
| Weight | 192±4g | |
| Cellular | Communication module | Quectel BG95 M3 |
| Frequency |
Working frequency: • Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Power | Battery |
Long lasting Lithium-ion battery and (3.6V,5400Mah or 8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <7uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red:Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
| More features: |
• Wifi Locate
The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.
• Low voltage alarm
• Temperature detection
The device built-in temperature sensor, it detects the temperature once the device is turned on, then will read it every 16 seconds. The temperature accuracy 95%.
•Suitable to different cases
The Asset-422 tracker is ideal for tracking valuable inventory, equipment, and assets. Since the battery lasts for 3 years with no charging required, the tracker is ideal as a long-term solution for keeping tabs on company property and assets. The tracker has a small form factor and can be concealed easily.
Q1. Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
