Product Details:
|
| Function: | GPS AGPS LBS Bluetooth WIFI | Feature: | Vibration Alarm |
|---|---|---|---|
| Scene: | Cars Position And Monitor | Warranty: | 12 Months |
| Use: | Real Time Tracking | G-sensor: | Support |
| High Light: | Vibration Alarm Vehicle GPS Trackers,IP68 Vehicle GPS Trackers,IP68 vehicle tracking device |
||

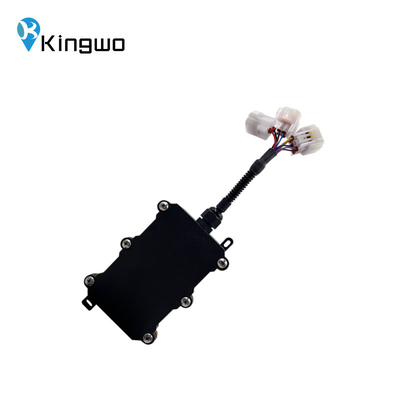

NT36K2 AGPS GPS LBS WIFI vibration alarm high accuracy GPS device smart sleep save power
Shenzhen Kingwo IoT Ltd (Hereby referred to “Kingwo”) is a high tech company focus on IoT technology, our business includes development and research, manufacturing , sale and operations of Beidou/GPS location service products. Our products covers to vehicle location service, asset location service, person location service and platform big data operation etc, our purpose is to provide software and hardware solutions for the Beidou/GPS all over the world.
pecial working mode for trailer: when the trailer tail is separated,NT36 will use it's own standby battery and send GPS data once per day,but when the trailer tail is connected to trailer head,NT36 will use trailer power and send GPS data every 15S.
| Product features | Description |
| Working voltage | DC 9V~36V,Suitable for 12V/24V vehicles |
| Working current | Average current<100mA@12V |
| Main power sleep current | <15mA@12V |
| Battery sleep current | <300uA@3.7V(Long sleep mode) |
| Inside battery | Polymer lithium,3.7V/5200mAH |
| Charge | Inside battery support fast charge |
| Communication Type | 2G:GSM/GPRS 850/900/1800/1900MHz |
| Location type | Support Beidou/GPS dual-mode positioning, AGPS assisted positioning and LBS positioning |
| Built-in antenna | Built-in GSM antenna and positioning antenna |
| Data storage | 4MB FLASH(Optional) |
| I/O interface | 2 input,1output |
| AD interface | 2 ADC input,input voltage 0~5V |
| UART interface | 2 RS232&1 RS485 |
| Remote upgrade | Support remote FOTA upgrade firmware |
| Wake up | Timed wake up, open box alarm wake up |
| Open box alarm | Support unpacking wake-up alarm |
| Dual link | Support multi-IP multi-link simultaneous connection |
| Size | 120mm*70mm*50mm |
| Temperature range |
Working temperature:-25℃~70℃； Storage temperature:-40℃～+85℃； |
| Protection level | IP68 |
