Product Details:
|
| Function: | Blind Compensation | Big Battery: | Support |
|---|---|---|---|
| Feature: | High Accuracy GPS Module | Scene: | Car Position And Monitor |
| Name: | Equipment GPS Tracker | Working Voltage: | DC 9V~36V |
| High Light: | Blind Compensation Equipment GPS Tracker,IP68 Equipment GPS Tracker,IP68 car position tracker |
||

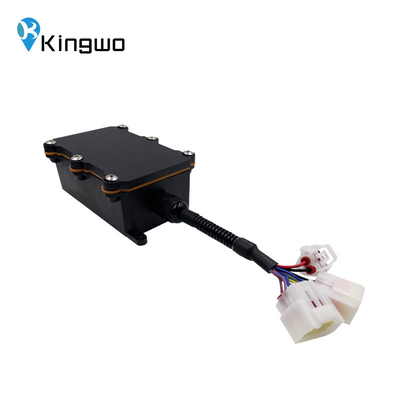

NT36J high accuracy GPS module car position and monitor blind compensation low voltage alarm
Adhering to the "customer-oriented" service concept, Kingwo will continue to focus on the location service sector, and continue to innovate around the needs of customers such as Internet+, auto finance, vehicle location services, asset location services, and person location services to provide the competitive products and service for the operators in the world and create maximum value for customers.
1. Position and monitor
2. GPS, AGPS, LBS ,WIFI ,Bluetooth
3. Blind Zone Compensation
4. Intelligent remote control
5. Mileage statistics
| Product features | Description |
| Working voltage | DC 9V~36V,Suitable for 12V/24V vehicles |
| Working current | Average current<100mA@12V |
| Main power sleep current | <15mA@12V |
| Battery sleep current | <300uA@3.7V(Long sleep mode) |
| Inside battery | Polymer lithium,3.7V/5200mAH |
| Charge | Inside battery support fast charge |
| Communication Type | 2G:GSM/GPRS 850/900/1800/1900MHz |
| Location type | Support Beidou/GPS dual-mode positioning, AGPS assisted positioning and LBS positioning |
| Built-in antenna | Built-in GSM antenna and positioning antenna |
| Data storage | 4MB FLASH(Optional) |
| I/O interface | 2 input,1output |
| AD interface | 2 ADC input,input voltage 0~5V |
| UART interface | 2 RS232&1 RS485 |
| Remote upgrade | Support remote FOTA upgrade firmware |
| Wake up | Timed wake up, open box alarm wake up |
| Open box alarm | Support unpacking wake-up alarm |
| Dual link | Support multi-IP multi-link simultaneous connection |
| Size | 120mm*70mm*50mm |
| Temperature range |
Working temperature:-25℃~70℃； Storage temperature:-40℃～+85℃； |
| Protection level | IP68 |
