Product Details:
|
| Module Abnormal Alarm: | Support | Function: | Mileage Statistics |
|---|---|---|---|
| Cplor: | Black | Built-in Battery: | Support |
| Feature: | Cornering Compensation | Warranty: | 1 Years |
| High Light: | Bluetooth Vehicle GPS Trackers,5200mAH Vehicle GPS Trackers,3.7V bluetooth car tracking device |
||

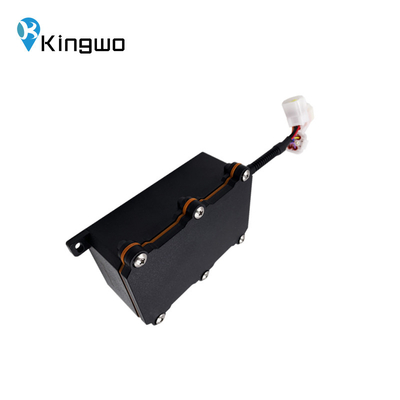

NT36E AGPS Bluetooth GPS module abnormal alarm trailer track black mileage statistics
NT36 is designed specially for trailer tracking or other vehicles. when the trailer tail is separated,NT36 will use it's own standby battery and send GPS data once per day, but when the trailer tail is connected to trailer head,NT36 will use trailer power and send GPS data every 15S. Besides,NT36 is IP68 rated and has quick charge function.
| Product features | Description |
| Working voltage | DC 9V~36V,Suitable for 12V/24V vehicles |
| Working current | Average current<100mA@12V |
| Main power sleep current | <15mA@12V |
| Battery sleep current | <300uA@3.7V(Long sleep mode) |
| Inside battery | Polymer lithium,3.7V/5200mAH |
| Charge | Inside battery support fast charge |
| Communication Type | 2G:GSM/GPRS 850/900/1800/1900MHz |
| Location type | Support Beidou/GPS dual-mode positioning, AGPS assisted positioning and LBS positioning |
| Built-in antenna | Built-in GSM antenna and positioning antenna |
| Data storage | 4MB FLASH(Optional) |
| I/O interface | 2 input,1output |
| AD interface | 2 ADC input,input voltage 0~5V |
| UART interface | 2 RS232&1 RS485 |
| Remote upgrade | Support remote FOTA upgrade firmware |
| Wake up | Timed wake up, open box alarm wake up |
| Open box alarm | Support unpacking wake-up alarm |
| Dual link | Support multi-IP multi-link simultaneous connection |
| Size | 120mm*70mm*50mm |
| Temperature range |
Working temperature:-25℃~70℃； Storage temperature:-40℃～+85℃； |
| Protection level | IP68 |
