Product Details:
|
| Dimension: | 64.5mm * 41.5mm * 25.5mm | Weight: | 100g |
|---|---|---|---|
| Working Temperature: | - 20℃ ～ 70 ℃ | Application: | Inventory Tracking |
| Frequency: | GSM 850 / 900 / 1800 / 1900MHz | MOQ: | 2 Unit |
| High Light: | Magnetic anti theft tracking device,IP65 Hidden Gps Tracker,IP65 anti theft tracking device |
||

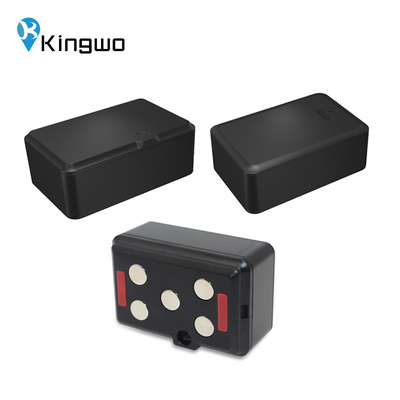

2G GSM GPS Tracker No Monthly Fee Cars Automotive Inventory Tracking Device
Description
Specification
| Physical | Dimension | 64.5mm*41.5mm*25.5mm(L*W*H) |
| Weight | 78±5g | |
| Cellular | Communication module | Quectel MC25 |
| Frequency |
Working frequency: GPRS: 850/900/1800/1900MHz Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz Output power: Class 4 (2W)@850/900MHz Class 1 (1W)@1800/1900MHz GPRS data: GPRS Class 10, Mobile Station Class B |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,2700mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <15uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: GPRS | |
| Environmental Parameter | Working Temperature | -20℃~ +70℃ |
| Humidity | 5%~95% (no fog) | |
| Ingress Protection Rating | IP65 | |
