Product Details:
|
| Wifi: | Wifi 4.0 | Light Sensor: | Built In |
|---|---|---|---|
| Bands: | Global Connectivity | Battery: | 8100Mah |
| Temperature Sensor: | Built In | IP Protection: | IP67 |
| High Light: | Wifi4.0 Rechargeable Asset GPS Tracking Device,Mini Vehicle GPS Tracking System,Long Standby IP67 GPS Asset Tracker |
||

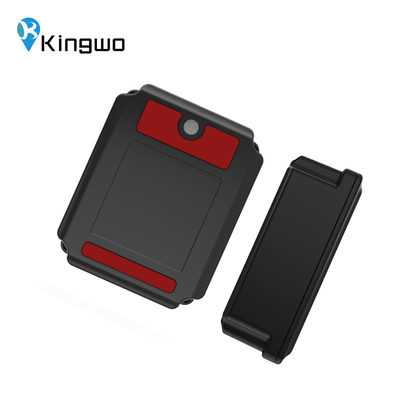

NT07E is a Lte - M CatM 1 NB- IoT Long Standby Wifi Indoors Tracking GPS Assets Tracker, the device has built Wifi for indoors tracking , the device capture the MAC IDs nearby and upload to backend server for inventory locate and status management
Features:
1. Wifi MAC ID indoors tracking
2. No wires, easy for installation
3. Temperature alarm
4. Intelligent work modes
5. Clock mode, fixed upload, warehouse mode
6. Temperature monitor
7. IP67 waterproof
8. AGPS, WIFI,LBS,WIFI
Specifications:
| Physical | Dimension | 81mm*51mm*31mm(L*W*H) |
| Weight | 192±4g | |
| Cellular | Communication module | Quectel BG95 M3 |
| Frequency |
Working frequency: • Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26*/B27/B28/B66/B85 |
|
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| Power | Battery |
Disposable Lithium-ion battery and (3.6V,5400Mah or 8100mAh) and ultra-low discharge rate:less than 1%, store one year below 25℃ |
| Power consumption | Average working current <100mA; Power save current <7uA; | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red:Celluar | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP67 | |
| More features: |
• Wifi Locate
The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the hotspot info then select the WIFI hotspots with strongest signal, the device will pack those hotspots info and saved into the packet that will be uploaded, after the backend receives Wi-Fi information, it will interpret the WIFI info and acquire the current location from the Wi-Fi database, The default setting is WIFI priority, once it detects WIFI Hotspot, it will upload WIFI info only , and do not use GPS, if WIFI is not detected, it will use GPS to position.
• LBS
The default position mode is by GPS, however when device enters into the blind zone and GPS cannot be fixed, the device will switch to LBS position, LBS provides the reference location which is might not accurate
• OTA commands from backend
Since the wake up of the device is short, it is hardly to receive SMS , to ensure the command sending efficiently, we suggest an OTA commands to be sent from the platform, when the device is online, the backend will automatic send this command, to make sure the commands is properly received.
• Tracking
The default setting is upload once a day, the upload packet information includes: Position status, longitude and latitude, network signal Strength, satellite numbers, battery voltage etc, the upload interval can be configured either by SMS or through tracking platform software
Q1. Can you help for design?
A:Yes,we have our own software and hardware engineer,you can give your idea to us,we can assist the design work.Provide sample for your reference.
