Product Details:
|
| Type: | Real Time Tracking | Network: | 2G,GSM/GPRS 850/900/1800/1900MHz |
|---|---|---|---|
| Battery: | 60mAh In Side | Color: | Black Or OEM |
| Screen Size: | No Screen Gps Tracker Type | Gprs: | TCP/IP |
| High Light: | Wired Motorcycle GPS Tracker,2G Motorcycle GPS Tracker,2G wired vehicle tracker |
||

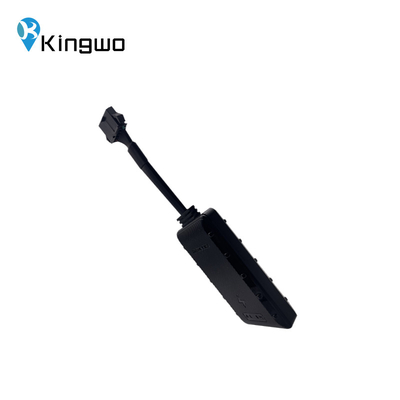

MT200 is real time motorcycle gps tracker 2g multiple hidden gps tracker for motorcycle,cars,ebikes and escooters.This one is a hardwired tracker with BLE for tracking powered assets and vehicles, with ignition detection and output for relay/buzzer/siren.
Mileage data is calculated based on the speed from GPS, The vehicle mileage data is uploaded to the backend along with the vehicle positioning data; the initial mileage can be configured when initially the device is set up.
To remote set device parameters including IP, center number and various of monitoring parameters via the backend or SMS.
As long as GPRS is connected, remote firmware upgrade can be done remotely, if your SIM card needs to has IP access limitation, we strongly suggest you to whitelist the below IP for OTA function: 119.23.233.52
The device supports dual IP connection between the primary server and the standby server. The default connection is the primary server. If there is a problem with the primary server, the device automatically switches to the standby server. The primary server and the standby server can be set in either IP or domain name.
The device is with built in Bluetooth function for configuration and sensors connecting for example Bluetooth fuel sensor
| Physical | Dimension | 75*40*13mm |
| Weight | 45±3g | |
| Cellular | GSM module | Quectel MC25 |
| Frequency |
Working Frequency: 850/900/1800/1900MHz |
|
| GPS |
Position accuracy:5-10m |
|
| Bluetooth | Bluetooth 5.0 | |
| Power | Input voltage | 9-100V |
| Battery | NI-MH AAA 3.6V/60mA | |
| Power consumption |
Average Current: <30mA Maximum current: <10mA |
|
| Interface | Digital input(2) | Ignition detect and Air condition status detect |
| Digital output(1) | Relay | |
| Analog input 1 | Voltage range:0-36V | |
| GSM antenna | Antenna inside | |
| GPS antenna | Antenna inside | |
| SIM | Microsim | |
| Indicator | Green: GPS, Red: GSM | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65 | |
APP: Itracksense (IOS & Android)
Platform Features:
1. One year free for Kingwo customers.
2. Use the ID number on your device to log in and track, password is 123456(user can modify the password after login)
3. APP works worldwidely.
4. Support multiple languages.
5. Support users to manage all devices in admin account.
Please contact us to create account for you and add all your devices' ID into your account.
6. Mobile APP support IOS and Android System, you could download it by searching easily.
7. You could track multiple devices in the same account on one map at the time on our platform.
8. To track the device, you could check location on platform,APP, sending SMS etc.
