Product Details:
|
| Use: | Hand Held | Type: | Real Time Tracking |
|---|---|---|---|

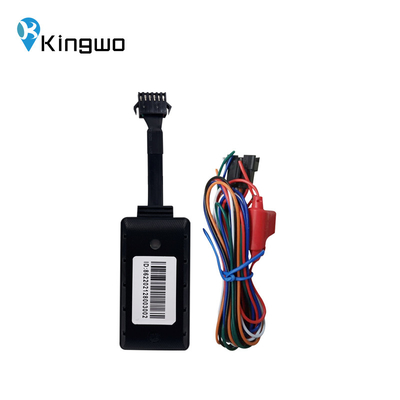

| Function: | GPS Tracking | Product Name: | Anti GPS Tracker Device MT200 |
| Network: | 2G,GSM/GPRS 850/900/1800/1900MHz | Gsm Antenna: | Inbuilt Antenna |
| High Light: | 2G electric scooter gps tracker,9v electric scooter gps tracker,2G GPS Fleet Tracking Device |
||
MT200 6pin with multiple connectors support real time tracking,history trace,geo fence,driving behavior,tamper alarm,towing alarm and analog input.More effictive,faster positioning,more steable and mini size for hidden.
● Built in high sensitive G-sensor accelerometer
● Support GPS, AGPS and LBS, super-fast and accurate positioning
● Built in light sensor for removal alarm
● Driving behavior monitor (Speeding, hard declaration, hard acceleration, cornering alarm)
● 9-90 Wide voltage
● Support dual IP and dual protocols
The device can be set to upload data packets to the backend at a certain time interval.
The device can be configured to send data packets at a certain distance
The device can be also configured to send data packets when it detects a certain speed change.
When the vehicles enters the GPRS blind area, the device will store the GPS data upon 15s interval as default value, those data will be uploaded to the backend server once GPRS network recovered, maximum 1000 pcs of data can be stored, the interval can be configured from 5-7200 seconds
If the device detects that the vehicle driving direction has certain angular deviation (default 15 degrees), the device will upload a packet extra to make sure the driving trace is more accurate.
| GPS |
Channels: 50 Sensitivity: -147dBm Position accuracy:5-10m Accuracy: 5m CEP Cold start: <27s Hot start: <1s |
|
| GPS chip | Quectel MC25 | |
| Bluetooth | Bluetooth 5.0 | |
| Power | Input voltage | 9-90V |
| Battery | NI-MH AAA 3.6V/60mA,1.5hours working time based on 2-3 minutes upload | |
| Power consumption |
Average Current: <30mA (DC 12V) Maximum current: <10mA (DC 12V) |
|
| Interface | Digital input(2) | Ignition detect and Air condition status detect |
| Digital output(1) | Relay | |
| Anolog input 1 | Voltage range:0-36V | |
| GSM antenna | Internal High Gain | |
| GPS antenna | Internal High Gain | |
| SIM | Microsim | |
| Indicator | 2 status LEDs, Green: GPS, Red: GSM | |
| Memory | 1000 packets | |
| Environmental Parameter | Working Temperature | -20℃ ~ +70℃ |
| Humidity | 5% ~ 95% (no fog) | |
| Ingress Protection Rating | IP65 | |
